The Fabric-Reinforced Controlled Motion Robot (FRCMR) moves by inflating sections of its body. The diagram shows the inflation patterns used to achieve various modes of locomotion. Each section of the diagram represents a bladder on the robot. Bladders are inflated to 4 PSI.

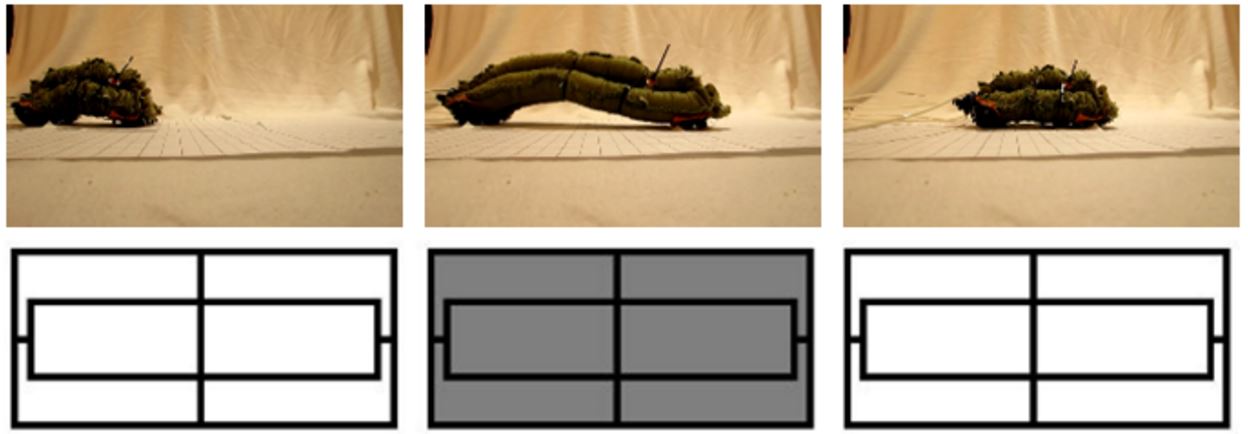

Crawling Motion

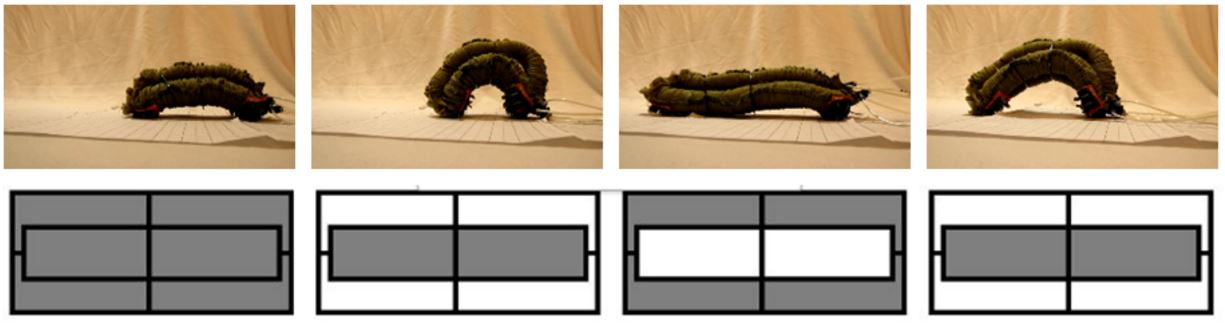

Inchworm Motion

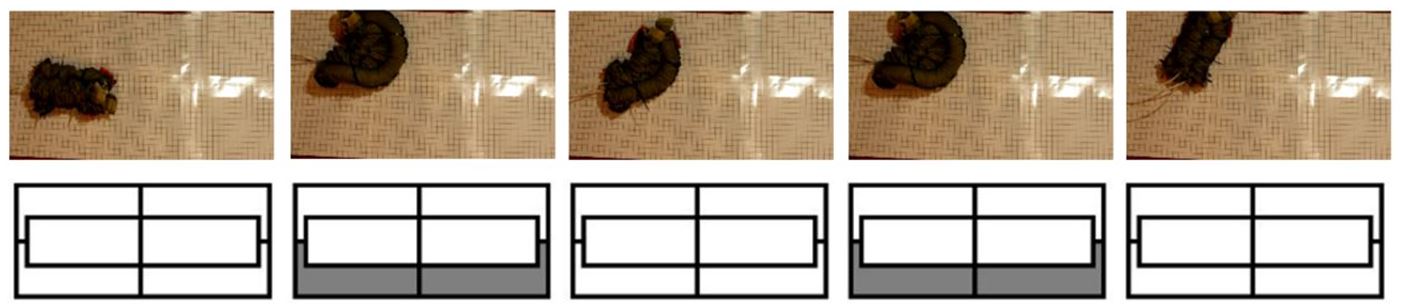

Turning Right

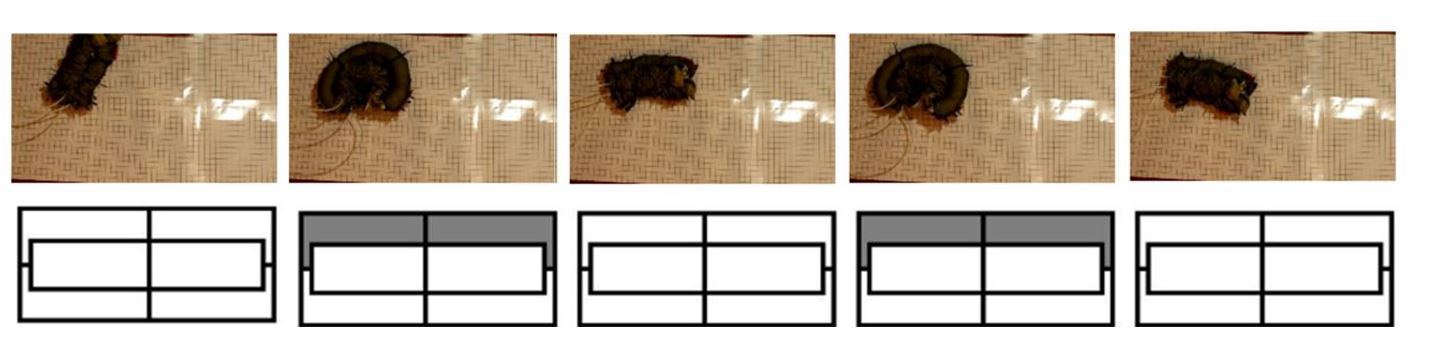

Turning Left

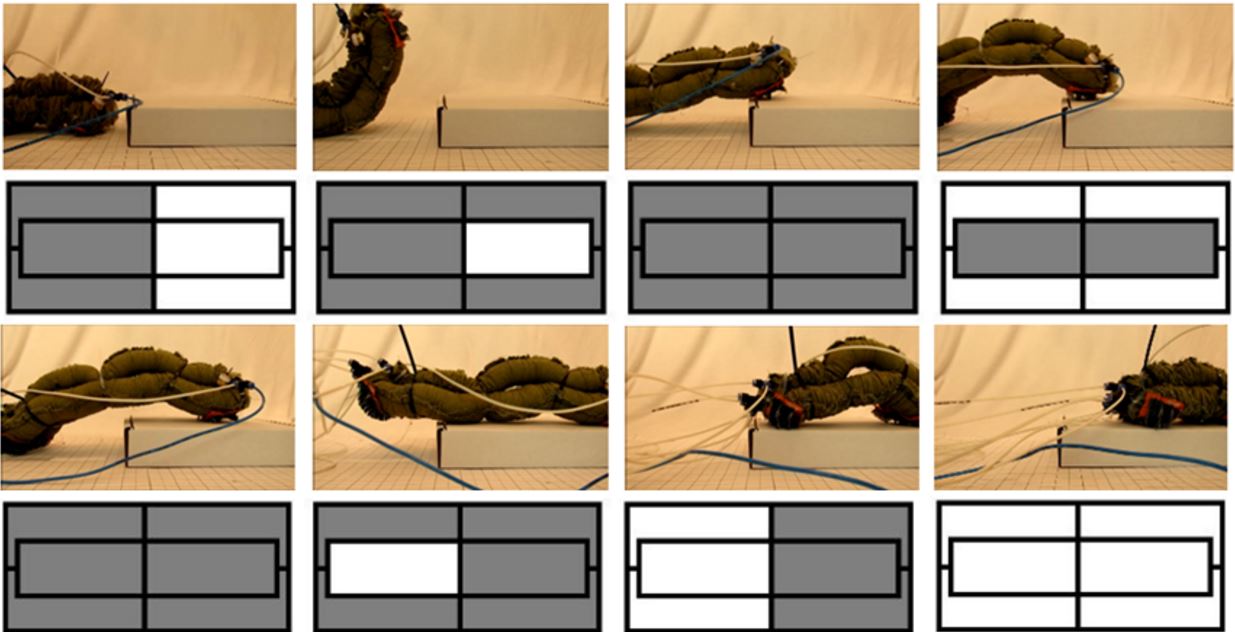

Climbing Motion
