Electrical Wiring

Once through the assembly stage, the device would have conductive wires sticking out - positive and negative terminals emerging from each hemisphere. Extension wires were used to connect the wires from the robot to the power supply. (see Figure 3.3.1)

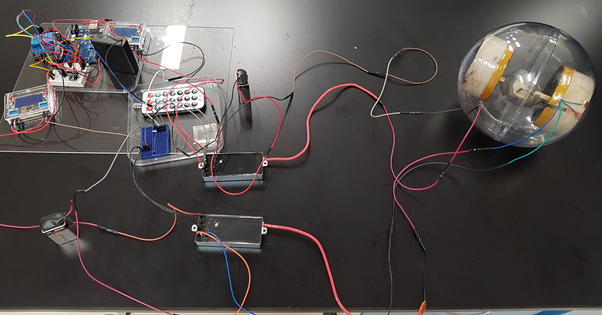

Figure 3.3.1: Electrical connection between device and power supply
