Step 1: Prepare Airbags

Cut off a line of PA-PE to make airbags between two sealing lines.

cut_airbags_1

cut_airbags_2

cut_airbags_3

Mark the points to be heat sealed. The rules can be detailed in here.

draw_lines_1

After finishing all the marks, draw a solid line at the position to seal the whole airbag.

draw_lines_2

Cut at the point 5mm outside from that solid line.

cut_airbags_4

Thus, we get a marked line to make airbags.

airbag_finial_1

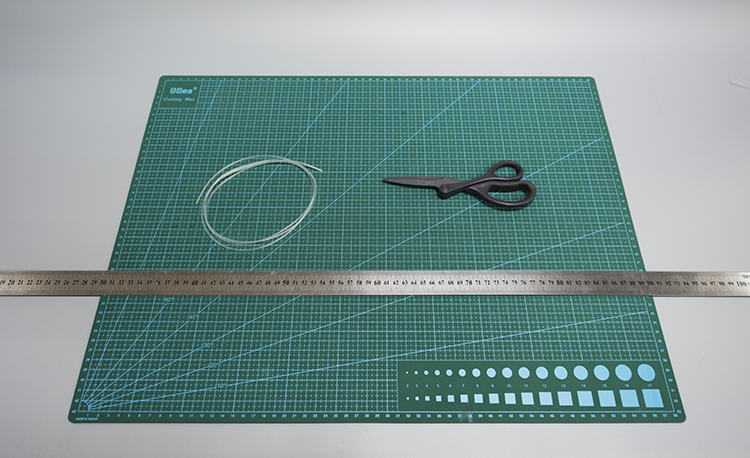

Silicone tubes inside

cut_tube_1

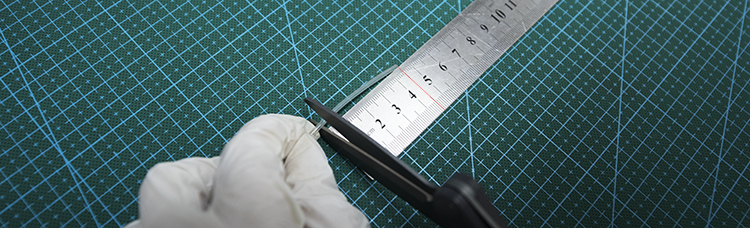

Firstly, get 8 silicone tubes, 4.5 mm each: directly cut off those bits at the length of 4.5 mm,

cut_tube_2

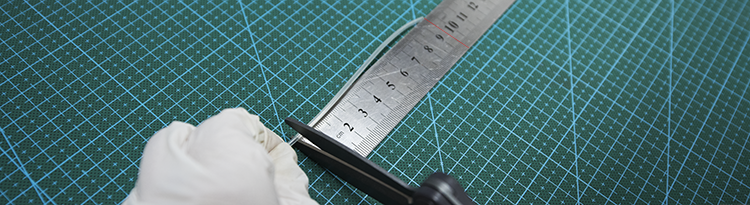

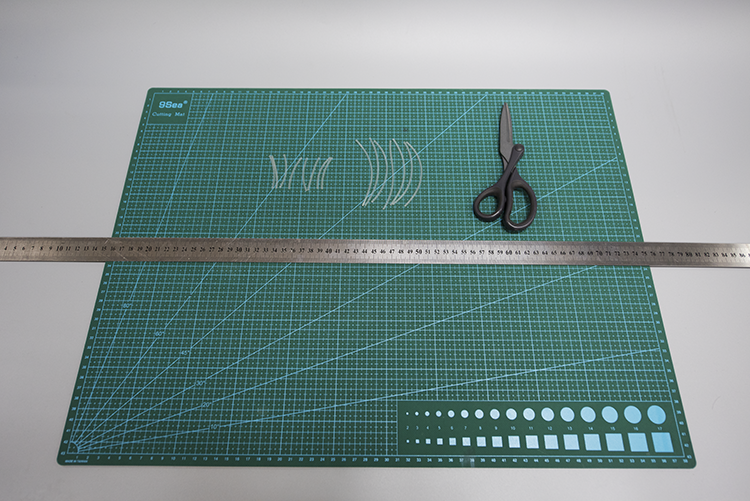

Similarly, prepare 7 tubes of 9.5 mm in the same way.

cut_tube_3

cut_tube_4
