Assign Properties

In this page, we will show detailed procedures of assigning material properties for frame and airbags.

Create Material: frame

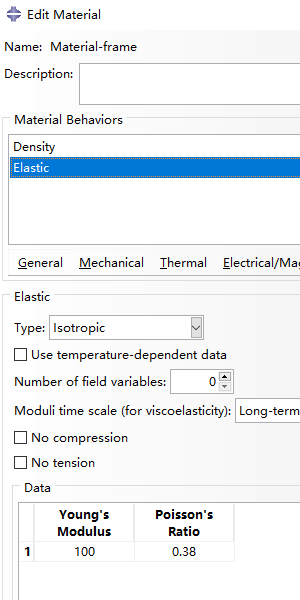

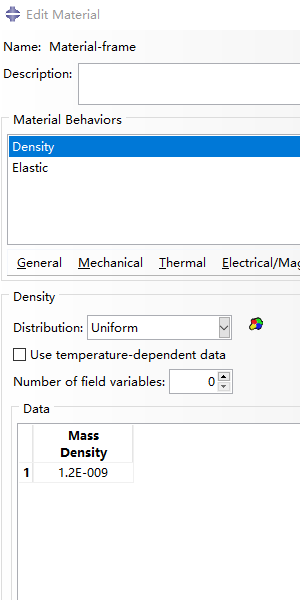

Firstly, we create a new material named 'Material-frame' for the frame. And set the following properties:

  • General > Density:
    • Density = 1.2e-9 Mg/mm³
  • Mechanical > Elasticity> Elastic:
    • Young’s Modulus = 100 MPa
    • Poisson’s ratio = 0.38
property-plus-1
property-plus-2

Create Material: airbag

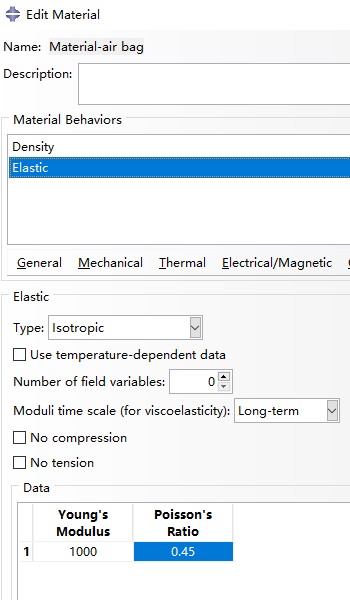

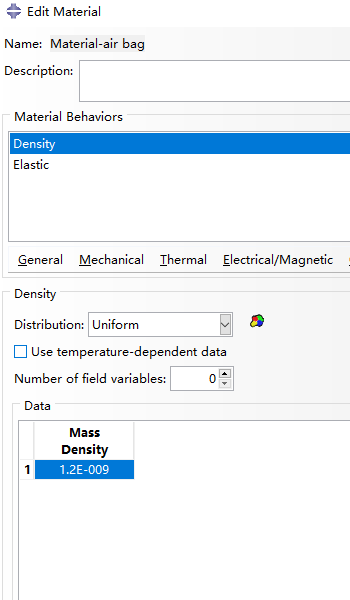

For the property of airbags inside named ' Material-air bag',  set:

  • General > Density:
    • Density = 1.2e-9 Mg/mm³
  • Mechanical > Elasticity> Elastic:
    • Young’s Modulus = 1000 MPa
    • Poisson’s ratio = 0.45
property-3
property-4

Create Sections

Double click on Sections in the model tree to create a new section. Set it to be a homogeneous solid and assign 'Material-frame' as its material.

property-4
property-plus-4

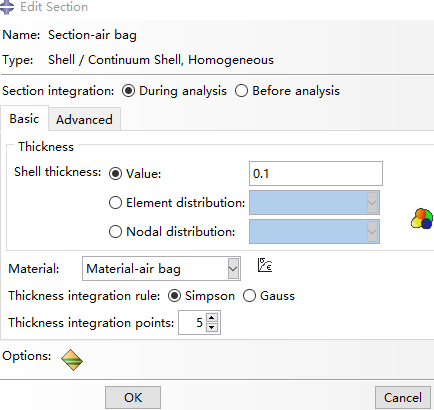

Create another section and set it to be a homogeneous shell and assign 'Material-air bag' as the material. Set the shell thickness as 0.1.

property-section-3
property-plus2

Edit Section Assignment

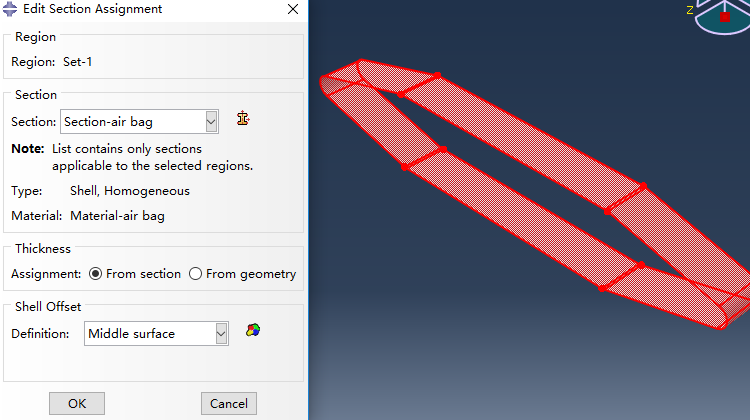

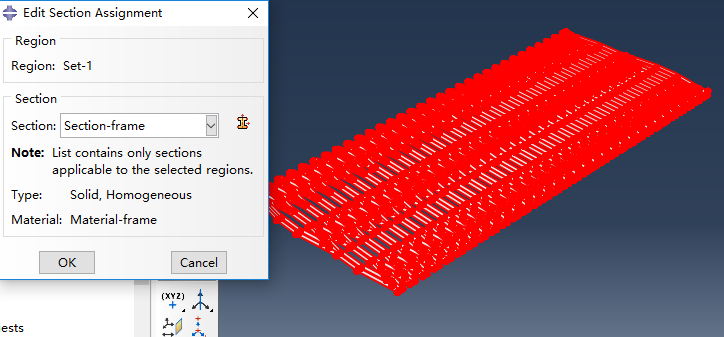

Last, assign the section property to corresponding part by selecting the entire part geometry.

property-section-5
property-plus-5

Bibliography

Jiang et al. (2016) Design and Simulation Analysis of a Soft Elastomer Manipulator based on Honeycomb Pneumatic Networks.

Sun et al. (2016) FLEXIBLE HONEYCOMB PNEUNETS ROBOTS.

Jiang et al. (2017) A Two-Level Approach for Solving the Inverse Kinematics of an Extensible Soft Arm Considering Viscoelastic Behavior.

Jiang et al. (2016) Design and Simulation Analysis of a Soft Manipulator Based on Honeycomb Pneumatic Networks.

Giri et al. (2010) Continuum robots and underactuated grasping

Grissom, et al. (2006) Design and experimental testing of the OctArm soft robot manipulator.
